QuinLED Dig-Quad v4
Back to Addressable LEDs section

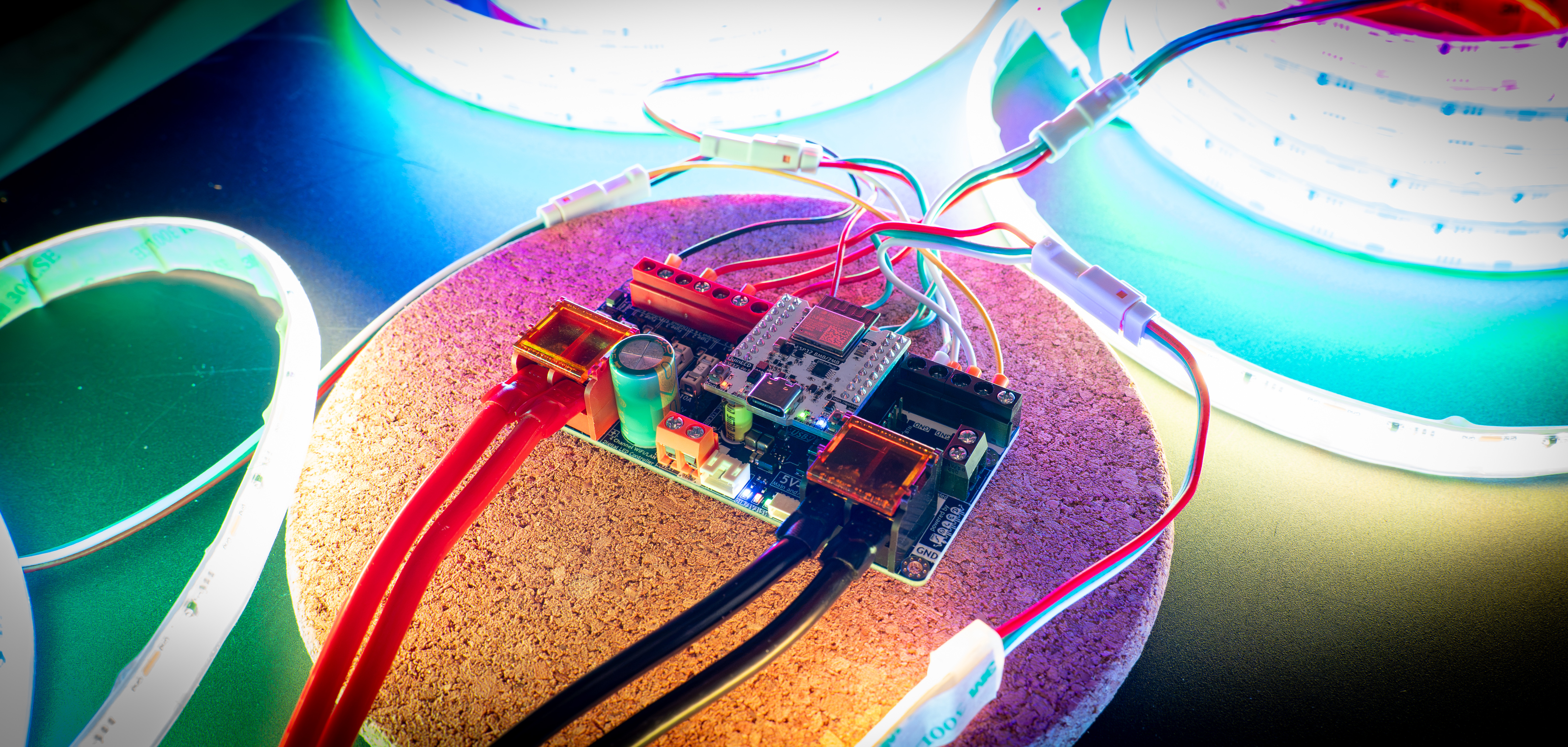

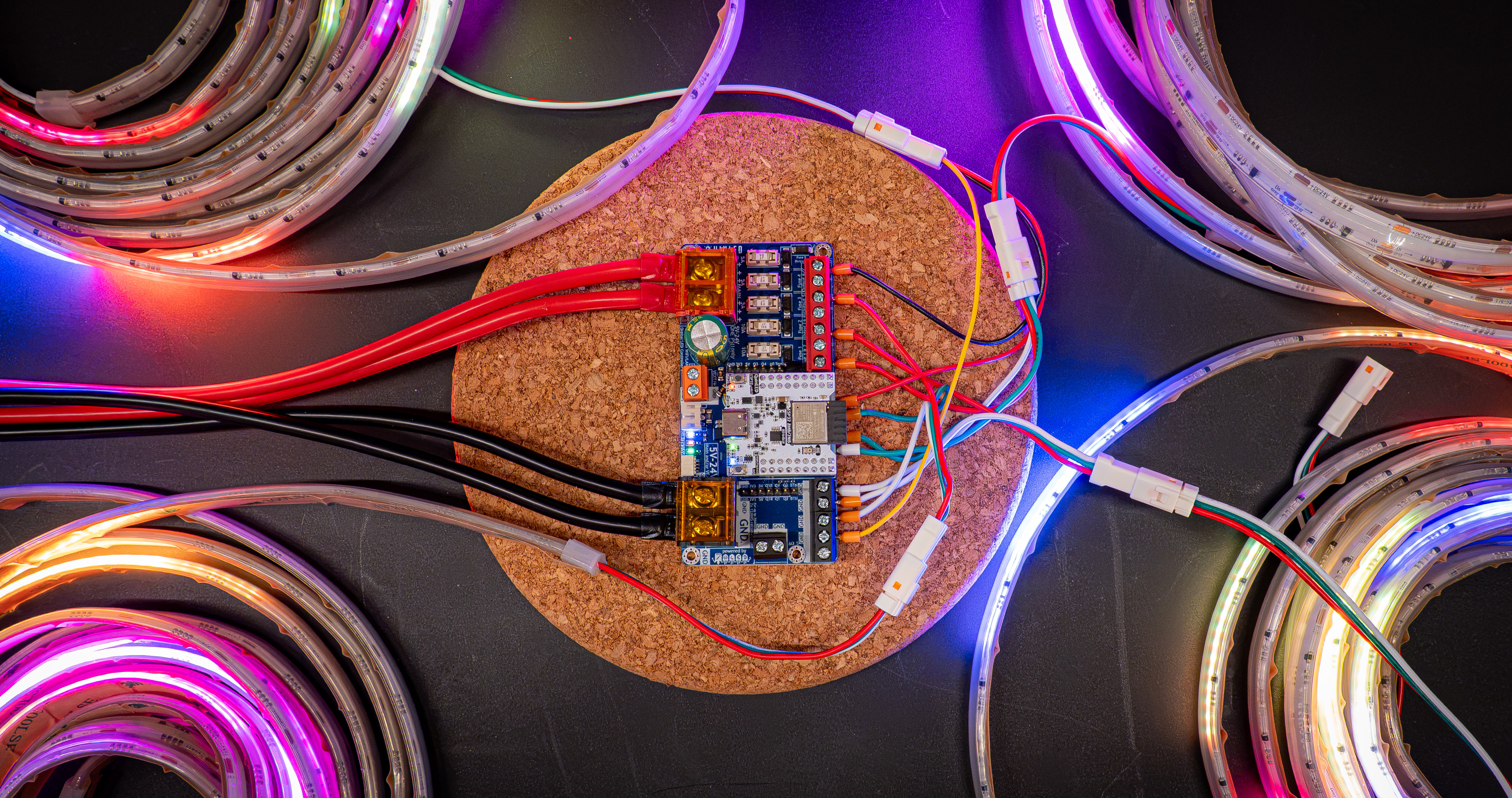

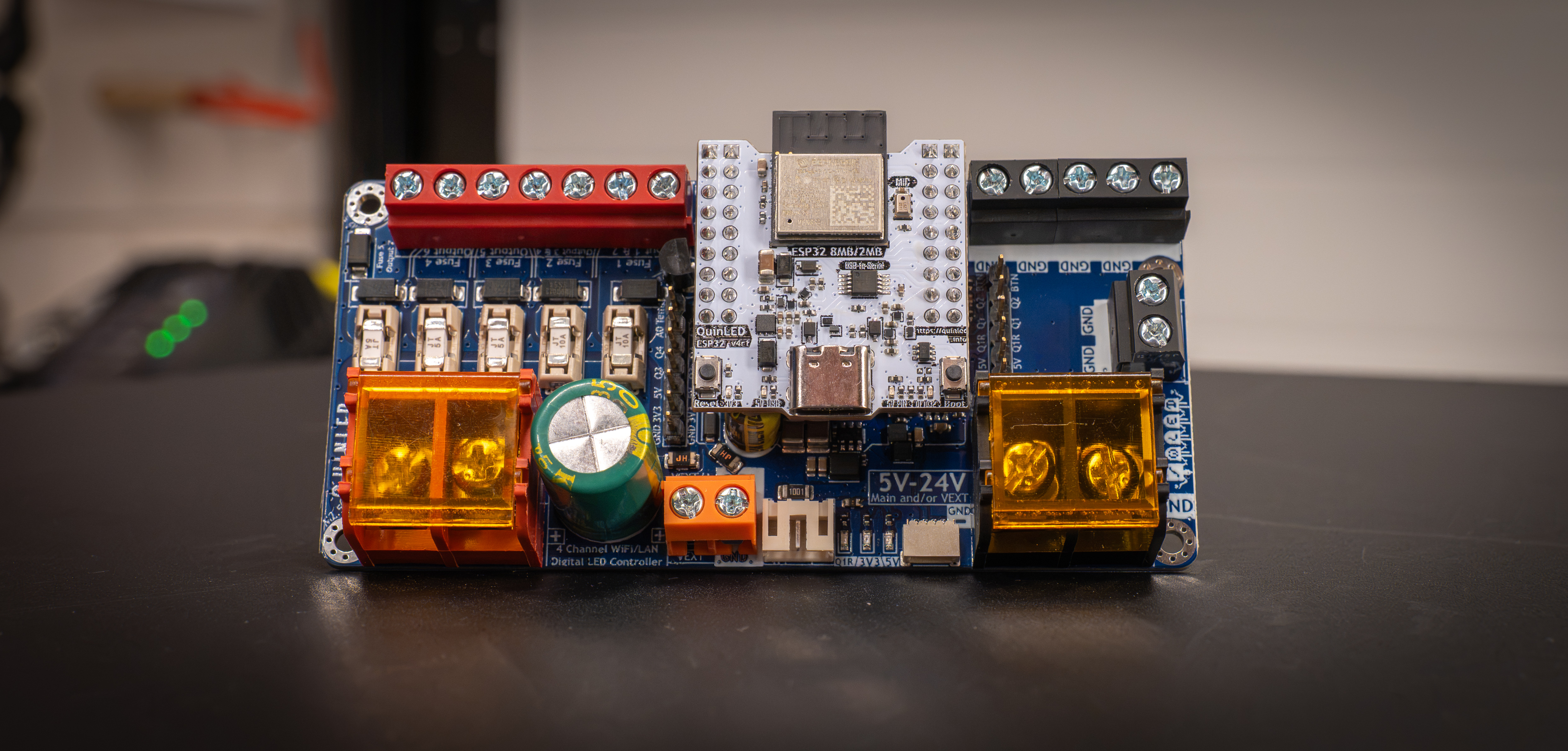

The QuinLED Dig-Quad is a Digital LED controller that builds upon the features of the smaller QuinLED Dig-Uno and has specific features to do larger scale projects while staying compact and offering the extra things you need when your projects become larger. These features include using an ESP32, screw input and output terminals, high board power handling, onboard fuses, reverse polarity protection circuit and level-shifters! The board gives you 4 individually level-shifted outputs with switchable data resistors and 7 positive and negative terminals that output over 5 fuses for easy power distribution and protection to do your power injection runs! Perfect to run a larger number of digital LEDs as easy as possible! It’s also fully compatible with the QuinLED-ESP32 which can be purchased with a board antenna, external or wired Ethernet option and comes included with every pre-assembled board!

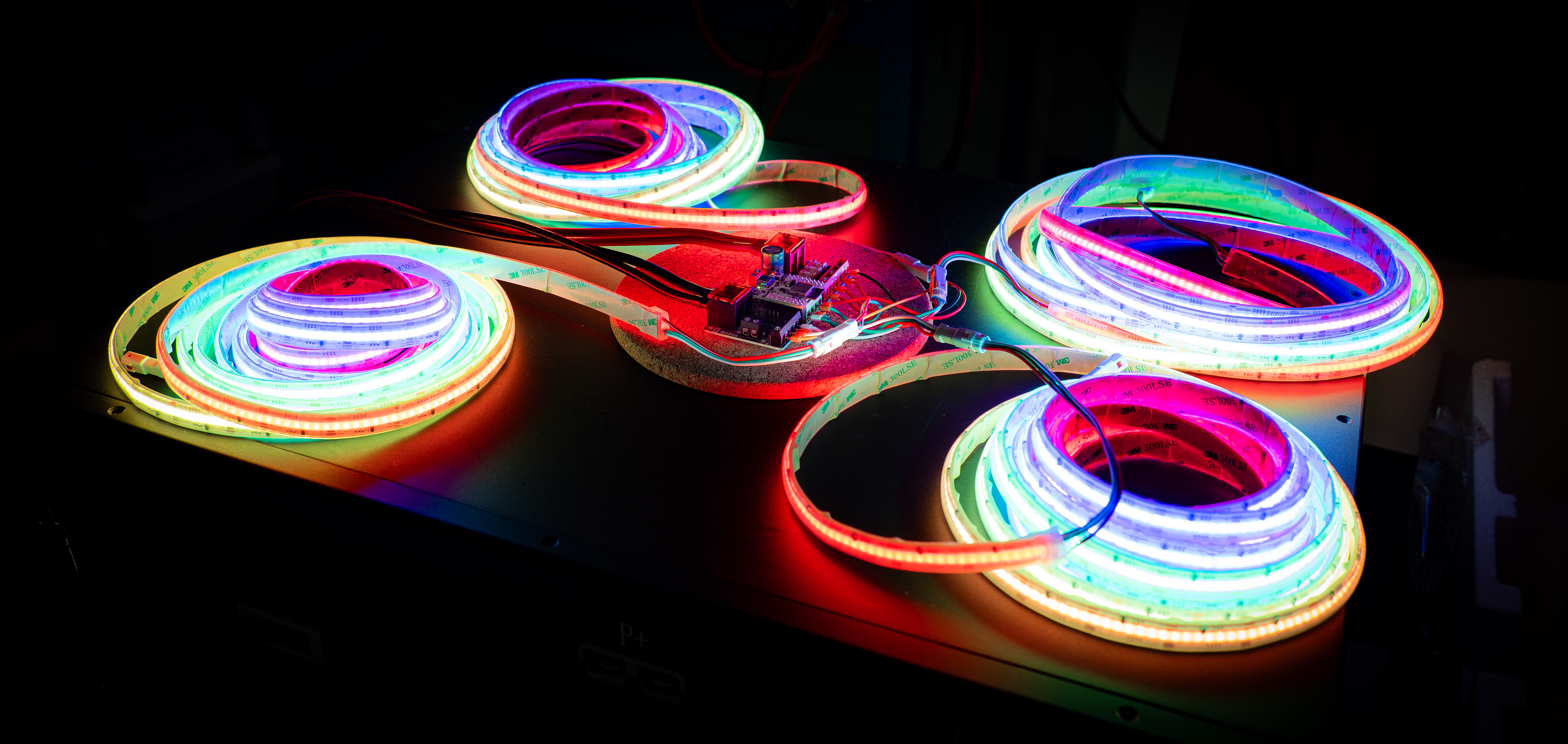

The board is perfect for driving 4x ws2812b “neopixel”, ws2811, sk6812, TM1814 or other type of 5v, 12v or 24v addressable LED strip! This means the controller with WLED is compatible with addressable RGB, RGBW and RGBCCT (or RGB+CCT) LED strips and pixels.
The board is supported in the current versions of WLED and ESPixelstick or anything else that runs on an ESP32! The pre-assembled version comes pre-flashed with a recent version of WLED and can be easily updated using https://install.quinled.info.
Board Article Index
The QuinLED Dig-Quad comes in a DIY version (you buy the components and build it yourself) and a Pre-Assembled version, each differ slightly in function so below sections will be divided. Some articles might seem double or the same because of it!
Pre-Assembled version
- QuinLED-Dig-Quad pre-assembled specifications (4 channel digital LED controller with easy power injection and protection)
DIY version
v3 released
- QuinLED-Dig-Quad DIY specifications (4 channel digital LED controller with easy power injection and protection)
Shared articles
- QuinLED-Dig-Quad QuinLED WLED Installer (https://install.quinled.info)
- QuinLED-Dig-Quad Pinout guide
- QuinLED-Dig-Quad Wiring guide

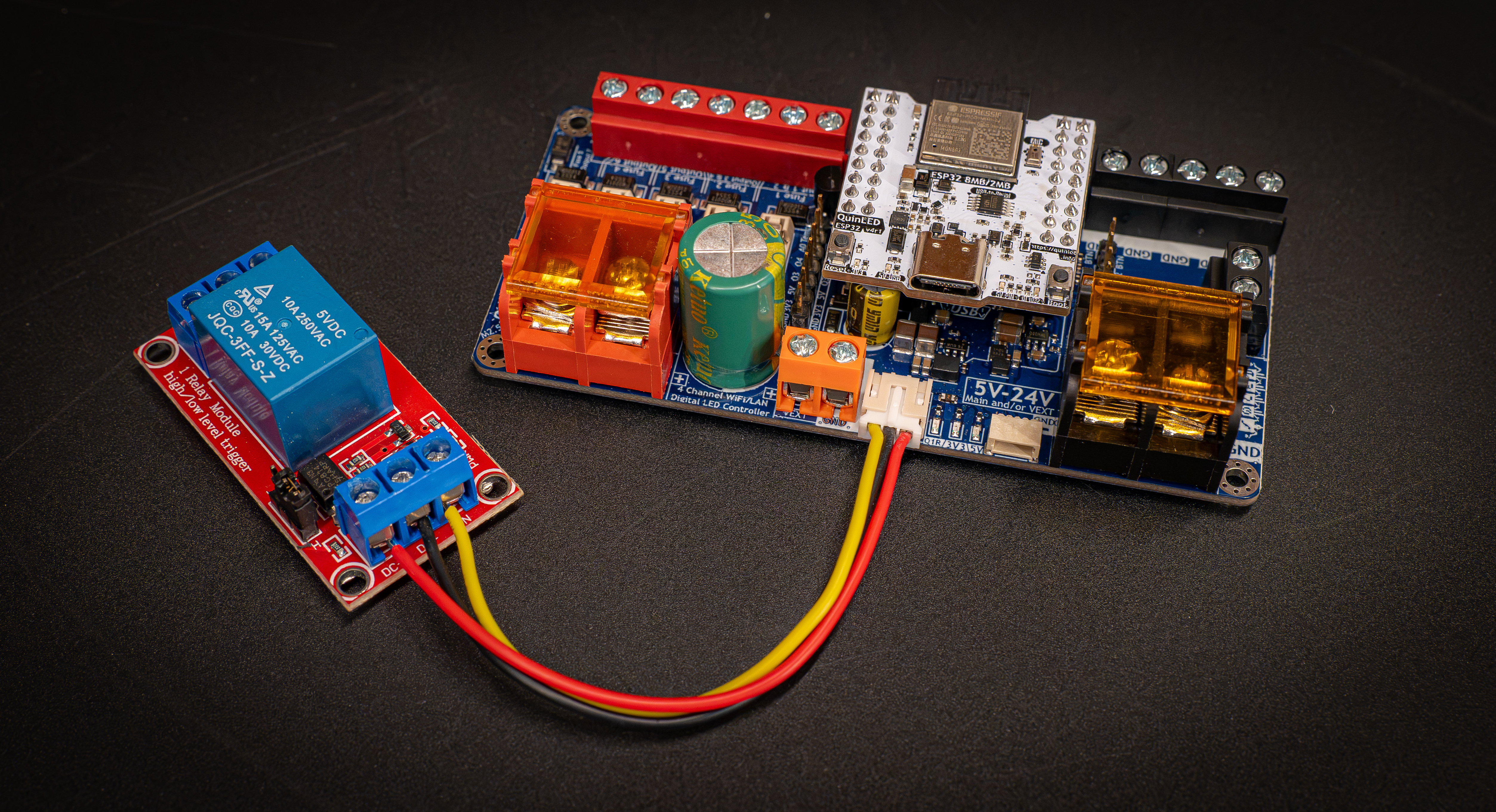

- Dig-Quad relay guide
- QuinLED-Dig-Quad Board Dimensions
- What diameter cable do you need | What fork terminals will fit the Dig-Quad
- For v1 – Adding 24v Compatability (old, not needed for current DIY v3!)
DIY and Pre-Assembled versions
There are 2 versions of the QuinLED-Dig-Quad, the DIY version you can build yourself and the pre-assembled version you get fully ready to go including pre-flashed with the newest available version of WLED! That way you can just screw in the cables and get started, no soldering required!
The Pre-Assembled version also adds a few features above the DIY version such as an individual level-shifter per output channel and the custom DC-DC circuit which accepts 5v-24v in for both main power and 5vEXT power allowing for even easier configuration vs the DIY version.
