Dig-Next-2
What’s in the box?

Back to Dig-Next-2 Index

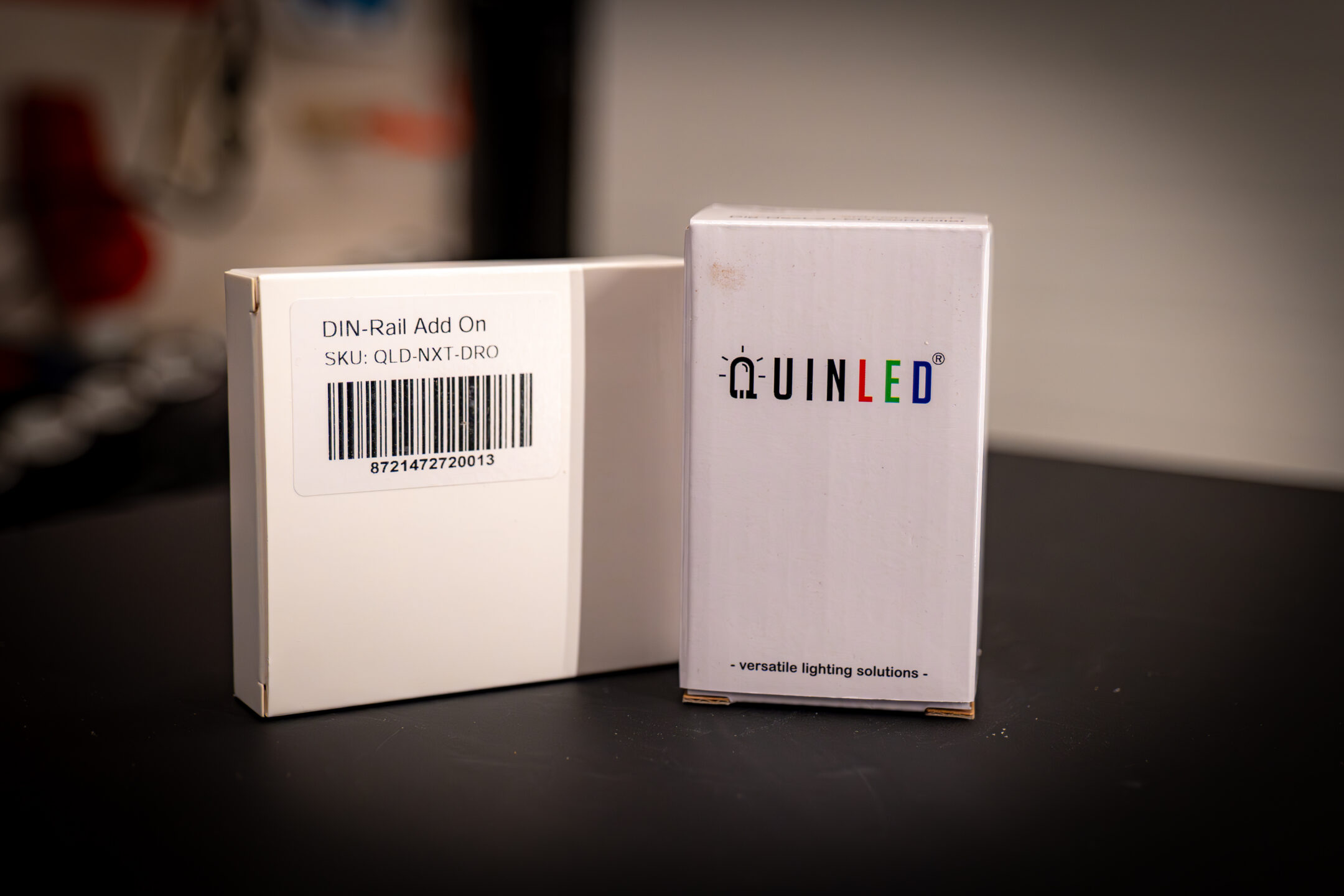

The Dig-Next-2 comes in 2 versions, the normal version and the version with the mounting adapter plate and DIN rail adapter included. So the Dig-Next-2 and the Dig-Next-2-DIN.

Normal version

For the Normal Dig-Next-2 you’ll receive the following in this box:

  • The Dig-Next-2
    • Fully assembled in plastic case
    • 2x 5A and 1x 10A fuse pre-installed
  • WiFi Antenna
    • Easily screws on to top
  • Relay Cable (3pin PH to wire)
    • Red = (always) 5V
    • Black = GND
    • Yellow = (always) 5V trigger
    • Easy to connect an external relay board for auto turn on/off main power supply feature
  • QEXT Cable (2×3 pin PHD to female dupont)
    • Red = (always) 3V3
    • Black = GND
    • Yellow = GPIO_0
    • Green = GPIO25
    • Blue = GPIO32
    • White = GPIO33
    • Can be used to connect various external boards or extra buttons, etc.
  • Info card/Manual

DIN version

If you opt to buy the DIN version you get the following extra:

  • Custom mounting plate
    • With holes for screw mounting or using a hook and loop strap
  • DIN Rail adapter clip
  • Screws to screw DIN rail adapter clip into mounting plate
